StoneSheets®-AL-19
6mm Stone Slab + 19mm Aluminum Honeycomb

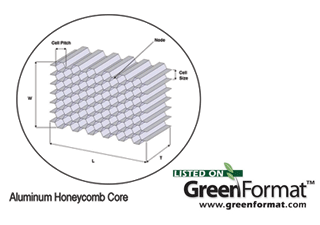

StoneSheets®-AL panels feature thin, whole slabs of stone 6mm thick, bonded to an aluminum honeycomb core borrowed from the aerospace industry for the light weight, and high stiffness-density ratio. The lightweight core of StoneSheets®-AL is sandwiched between two durable aluminum sheets, 12mm or 19 mm standard thicknesses, and providing thestone slabs consistent, reinforced support from edge to edge. Both of our standard thin stone & honeycomb panels, erving as a built in
substrate that easily anchors or attaches inthe field. Panels are cut to the desired size, and the edges are finished in a variety of ways including solid stone, which conceals any revealed honeycomb profiles in designs, or other bonded and custom choices are available.
StoneSheets®-AL weighs about 160 pounds for a full sized standard panel, which is any size up to 48" x 96" (122 cm x 244 cm). For special requirements, there are some stones available in custom sizes up to 60" x 100". Whatever the size, the light weight and high performance of the aluminum honeycomb core and StoneSheets®-AL, provides strength significantly superior to 2cm or 3cm slabs under bending, torsion, impact and compression, both parallel and perpendicular to the slabs. This resiliant material combines the beauty of solid stone slabs with aerospace performance, and is changing the way stone is used and transforms heavy stone into integrated, easily installed, durable products that save time, resources, and money.
StoneSheets®-AL is available in nearly every Granite, Marble, Onyx, Travertine, Sandstone, Limestone, or Quartzite, in any finish the stone allows, and the Aluminum Honeycomb panel thickness can be adjusted from 8mm - 40mm + thick to serve a variety of applications. We custom cut the material to your size and manufacture to your specifications, for components for OEM Manufacturers, architects and construction projects, and contractors around the world.
Click here to see APPLICATIONS for exterior cladding (Curtainwalls, Rainscreens), countertops, interior walls, shower surrounds, yachts, airplanes, and other custom applications - or we provide full slabs!
Click here for:
Ask about the opportunity to increase the recycled content for your project !
- 6mm thick stone Slab + 12mm Aluminum Honeycomb Panel (also available with different thicknesses of Aluminum Honeycomb such as 19mm, 25mm, or other custom specifications) - For a 4ft x 8ft thin stone panel of StoneSheets®-AL-19, the total weight is only ~160 pounds! - Consistent, Superior strength from edge to edge allows for easy dispersion, installation, or field trimming when necessary. - Ability to combine products, as in the case of countertop use, eliminating the need for plywood subtops, instead using a long-life, recyclable material, Aluminum for a superior installation. - Available in nearly every Granite, Marble, Onyx, Travertine, Limestone, Sandstone, or Quartzite, in any available finish the stone allows (i.e. Honed, Polished, Brushed, etc). - 1/3 the shipping requirements of traditional 2cm stone, reducing GHG & CO2 Emissions. - Increase in project safety through lighter, more easily controlled and dispersed stone solutions.
|
